Power Conversion Systems · 30 kW → 10 MW

Bidirectional PCS,
built from modules.

Every TOBOR BESS is converted by TOBOR power modules: 30 kW MTX and 50 / 60 kVA MTX Hybrid PMs for commercial sites, 125 kW PTX modules paralleled up to 2 MW for industry, and one 125 kW PCS module per battery rack inside CTX containers, stacked to 10 MW at 33 kV.

Get PCS sizing See the PCS range ↓
Range
30 kW–10MW
Module sizes
30 · 60 · 125kW
Peak PM eff.
98.5%
Unbalanced load
100%

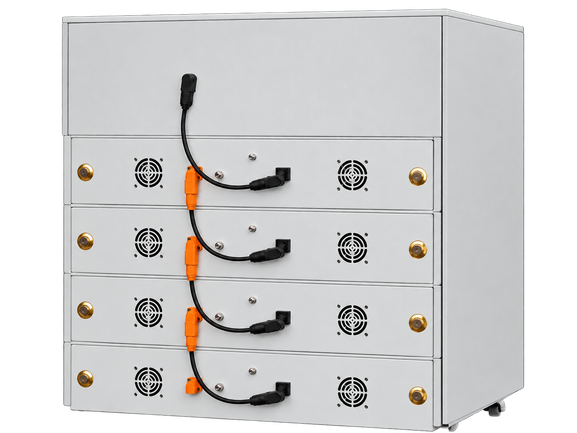

TOBOR BESS cabinet — bidirectional power modules convert between the LFP battery, the grid, solar and site loads SOLAR · 2 × MPPT (MTX-H) GRID · 400/230 V 3Φ BATTERY · 680–900 V DC EMS · RS485 / CAN
One module family · two bands

Add modules, not new platforms.

TOBOR power conversion scales by paralleling identical bidirectional modules. The same 125 kW PM that runs a PTX system on a factory floor sits on every battery rack in a CTX container. Fewer spares, one controls stack, one service team.

Commercial & industrial · 30 kW – 2 MW

MTX cabinets + PTX systems

MTX-PM30 · isolated 30 kW PM 30 / 60 kW
MTX-H50 / H60 · solar-hybrid PM 50 / 60 kVA
PTX-PM125 · 1 → 8 PMs per group 125 kW – 1 MW
PTX-2000 · 2 × 1 MW groups 2 MW
Behind-the-meter · factories, hospitals, campuses, EV depots
Utility-scale · 1.75 MW – 10 MW

CTX containers · one PCS per rack

Rack PCS · 125 kW per 806 V rack 1 : 1
CTX-5000 · 20 racks × 125 kW 2.5 MW
CTX-6600 · 14 racks × 125 kW 1.75 MW
CTX-B20 · 80 modules · 33 kV 10 MW
Front-of-meter · arbitrage, firming, frequency response
PCS modules · 30 kW → 125 kW per PM

Four power modules.
Every system from 30 kW to 10 MW.

Catalogue figures per power module. Configured systems parallel these modules; the project offer confirms the supplied configuration, protection scheme and grid interface.

Module Rating per PM AC side DC / battery window Peak eff. Scaling
MTX-PM30
Standard · HF isolated		 30kW 3Φ + PE
260–530 V		 150–1000 V
full power 300–1000 V		 ≥ 95.5% Up to 8 PMs off-grid · 60 PMs grid-connected · MTX-S30 / MTX-S60
MTX-H50
Hybrid · 2 × MPPT		 50kVA
peak 55 kVA · 73 A		 3Φ 4-wire
400 / 230 V		 350–820 V
150 A max		 97.8% Up to 15 PMs off-grid parallel · MTX-H60 cabinet
MTX-H60
Hybrid · 2 × MPPT		 60kVA
peak 66 kVA · 87 A		 3Φ 4-wire
400 / 230 V		 420–820 V
150 A max		 97.8% Up to 15 PMs off-grid parallel · MTX-H60 cabinet
PTX-PM125
Industrial · bidirectional		 125kW
max 137.5 kW · 181 / 200 A		 3Φ
400 / 230 V · −20…+15%		 680–900 V
abs. 680–950 V · 200 A		 98.5% Up to 15 PMs per parallel group · PTX 125 kW → 2 MW
CTX rack PCS
125 kW module per rack		 125kW / rack 3Φ 4-wire
400 V · 0.4 / 33 kV unit transformer		 730.8–894.6 V
806.4 V LFP rack		 98.5% 20 per CTX-5000 (2.5 MW) · 80 per CTX-B20 (10 MW)

PTX-PM125 · 125 kW module

Rated / max power125 / 137.5 kW
Rated / max current181 / 200 A
Nominal AC400 / 230 V · 50 / 60 Hz
Grid voltage range−20% → +15%
Battery window680–900 V (abs. 680–950 V) · 200 A
Peak efficiency · THD98.5% · < 3%
Charge ↔ discharge reversal< 20 ms
Parallel · weight · IP15 PMs / group · 55 kg · IP20

MTX-H50 / H60 · hybrid module

Rated / peak output50 / 60 kVA · 55 / 66 kVA
Rated AC current73 / 87 A
AC output400 / 230 V · 3Φ 4-wire
PV inputs2 MPPT · 38.4 + 38.4 kW
MPPT window200–800 V
Battery window350 / 420–820 V · 150 A
Mode transfer · unbalanced< 10 ms · 100%
Peak efficiency · IP97.8% · IP20 PM

MTX-PM30 · 30 kW module

TopologyBidirectional · HF isolated
AC voltage260–530 V · 3Φ + PE
DC range150–1000 V (full power 300–1000 V)
Peak efficiency≥ 95.5%
Charging power factor≥ 0.99
Parallel8 PMs off-grid · 60 grid-connected
Operating temp · weight−40 → +70 °C · ≤ 18 kg
CommunicationCAN

CTX · per-rack PCS

Architecture1 × 125 kW PCS per battery rack
CTX-500020 modules · 2.5 MW · 5.06 MWh
CTX-660014 modules · 1.75 MW · 6.64 MWh
CTX-B20 block80 modules · 10 MW · 20.26 MWh
PCS efficiency98.5% peak
MV interface2.75 MVA · 0.4 / 33 kV per container
Block response< 100 ms full reversal
Plant controlIEC 61850 · Modbus TCP
Configured systems · modules × count

From one module to a 10 MW block.

PTX systems parallel 125 kW PMs up to a 1 MW group; 2 MW runs as two 1 MW groups. CTX containers put one 125 kW module on every rack. Open any system for its full sheet.

PTX-250 · 2 × PM125

250 kW / 257 kWh

Large MSMEs, hospitals and IT campuses — peak shaving, solar time-shift and DG-hours reduction.
PTX-500 · 4 × PM125

500 kW / 514 kWh

Steel, textile and pharma plants cutting maximum demand; EV fleet depots on a constrained connection.
PTX-1000 · 8 × PM125

1 MW / 1.03 MWh

One parallel group for HT-connected plants, data-centre campuses and C&I solar parks.
PTX-2000 · 2 × 8 PM125

2 MW / 2.06 MWh

Two 1 MW groups behind the meter — large HT consumers, industrial parks and open-access solar.
PTX-125 · 1 × PM125

125 kW building block

A single 125 kW PM on a 680–900 V LFP battery, sized to the runtime you need.
CTX-5000 · 20 rack PCS

2.5 MW / 5.06 MWh

One 20 ft liquid-cooled container with its own 2.75 MVA 0.4 / 33 kV unit transformer.
CTX-6600 · 14 rack PCS

1.75 MW / 6.64 MWh

The long-duration container on 588 Ah cells — ~3.8 h for evening-peak cover and load shifting.
CTX-B20 · 80 rack PCS

10 MW / 20.26 MWh

Four CTX-5000 containers on a 33 kV RMU — arbitrage, frequency response and renewable firming.
Transfer & response · stated per product

Response times,
without the fine print.

Not every PCS switches the same way, and we don't pretend it does. Here's what each module family actually does when the grid fails or the dispatch signal flips.

The MTX Hybrid carries a built-in switching device: grid ↔ off-grid mode transfer happens in under 10 ms, with 100% unbalanced-load support on the 400 / 230 V four-wire output.

The PTX 125 kW PM reverses from full charge to full discharge in under 20 ms — that's dispatch speed. Islanding on a grid outage is handled by external PCC switching, engineered to your site's single-line diagram.

The MTX Standard 30 kW PM restarts automatically from the battery in about 30–40 seconds — the right fit for loads that tolerate a short interruption, and for peak management where backup is secondary.

Response by module family catalogue figures
< 10 ms
MTX-H50 / H60 · grid ↔ off-grid mode transferBuilt-in switching device · 100% unbalanced load
< 20 ms
PTX-PM125 · charge ↔ discharge reversalGrid-outage transfer via external PCC switching
< 100 ms
CTX-B20 · full power reversal at block level0–100% ramp in < 200 ms · IEC 61850 control
~30–40 s
MTX-PM30 · automatic system restart on grid failureFor loads that tolerate a short interruption
20 ms
HTX compact PMs · typical bypass transfer48 V LFP class · see compact range below
Which PCS for which job

Sized for Indian sites.

We size off your 15-minute interval data and outage profile, not nameplate guesses. Four common starting points:

MTX-PM30 × 1–2

MSME peak management

30 or 60 kW of isolated, bidirectional conversion for small factories, clinics and offices cutting demand charges.

MTX-H50 / H60

Solar + critical loads

Two 38.4 kW MPPTs, < 10 ms mode transfer and full unbalanced-load support for commercial rooftops.

PTX-PM125 × 2–16

Factory & campus

250 kW to 2 MW for maximum-demand cuts, DG-hours reduction and BESS-buffered EV charging.

CTX rack PCS × 20–80

Utility & IPP

2.5 MW containers stacked to a 10 MW, 33 kV block for arbitrage, firming and frequency response.

Compact range · HTX power modules

For smaller sites:
HTX, 2.4–4.2 kW per module.

Pure-sine compact PMs on a 48 V (16S) LFP battery class, for telecom huts, small shops and site offices. 93.5% peak inverter efficiency, 20 ms typical bypass transfer, RS485 + CAN.

Model Rated output Battery Parallel Notes
HTX-3 3kW 48 V LFP · 16S Up to 3 identical PMs · 6 / 9 kW Pure sine · 93.5% peak · 20 ms typical bypass
HTX-3.6 3.6kW 48 V LFP · 16S Up to 3 identical PMs · 7.2 kW pair Pure sine · 93.5% peak · 20 ms typical bypass
HTX-4.2 4.2kW 48 V LFP · 16S Up to 3 identical PMs · 8.4 kW pair Pure sine · 93.5% peak · 20 ms typical bypass
HTX Solar 2.4 2.4kW 48 V LFP · 16S — Integrated MPPT · PV 12–59 V · 12.5 A
PCS · battery · EMS · grid interface

Need PCS sized
for 30 kW–10 MW?

Send your load profile, connection voltage and solar size. We'll respond within 48 hours with the module count, configured system and grid-interface scope.

Get a sizing proposal See all BESS systems →

Questions and answers

What power conversion does a TOBOR BESS use?
TOBOR systems are built from bidirectional power modules: a 30 kW isolated PM in MTX Standard cabinets, a 50/60 kVA hybrid PM with two MPPTs in the MTX Hybrid, and a 125 kW PM in PTX systems from 125 kW to 2 MW. CTX containers use one 125 kW PCS module per battery rack — 20 per 2.5 MW CTX-5000 and 80 in the 10 MW CTX-B20 block.
How do PTX systems scale to 2 MW?
The 125 kW PTX power module (98.5% peak efficiency, 680–900 V battery window) is paralleled into systems of 125 kW, 250 kW, 500 kW and 1 MW. The 2 MW PTX-2000 runs as two 1 MW groups of eight modules each.
How fast does the PCS transfer or respond?
It depends on the module family. The MTX Hybrid transfers between grid and off-grid modes in under 10 ms. The PTX 125 kW module reverses from charge to discharge in under 20 ms; grid-outage islanding is handled by external PCC switching engineered for the site. The MTX Standard 30 kW module restarts automatically in about 30–40 seconds. The CTX-B20 block achieves full power reversal in under 100 ms.
Can the PCS integrate solar?
Yes. The MTX Hybrid 50/60 kVA module has two MPPT inputs of 38.4 kW each with a 200–800 V MPPT window. Larger PTX and CTX systems integrate with site solar, DG and EV charging through the TOBOR EMS.
Do you offer smaller inverters?
Yes — the compact HTX range: 3, 3.6 and 4.2 kW pure-sine power modules on a 48 V LFP battery class, parallelable up to three identical modules, plus the HTX Solar 2.4 kW with an integrated MPPT.
