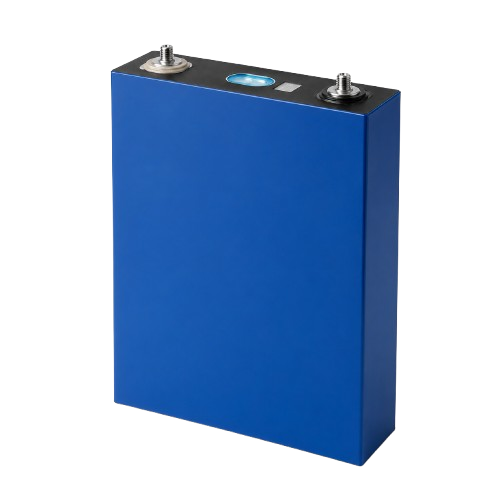

3.2 V
314 Ah · Lithium iron phosphate
The starting point of the CTX-5000 architecture. Individual LFP cells are assembled into packs with voltage and temperature sensing.
Tobor - Green Energy Solutions
Industrial storage. Connected charging.
Big energy.
Built around you.
500 kW to 10 MW
TOBOR is a BESS manufacturer and system integrator in Gurugram, India, with industrial systems above 250 kW. Connect battery storage, EV chargers, the Tobor mobile app and CSMS software in one green energy ecosystem.
THE TOBOR ECOSYSTEMSTORE · CHARGE · CONNECT
TOBORGreen Energy
Solutions
Solutions

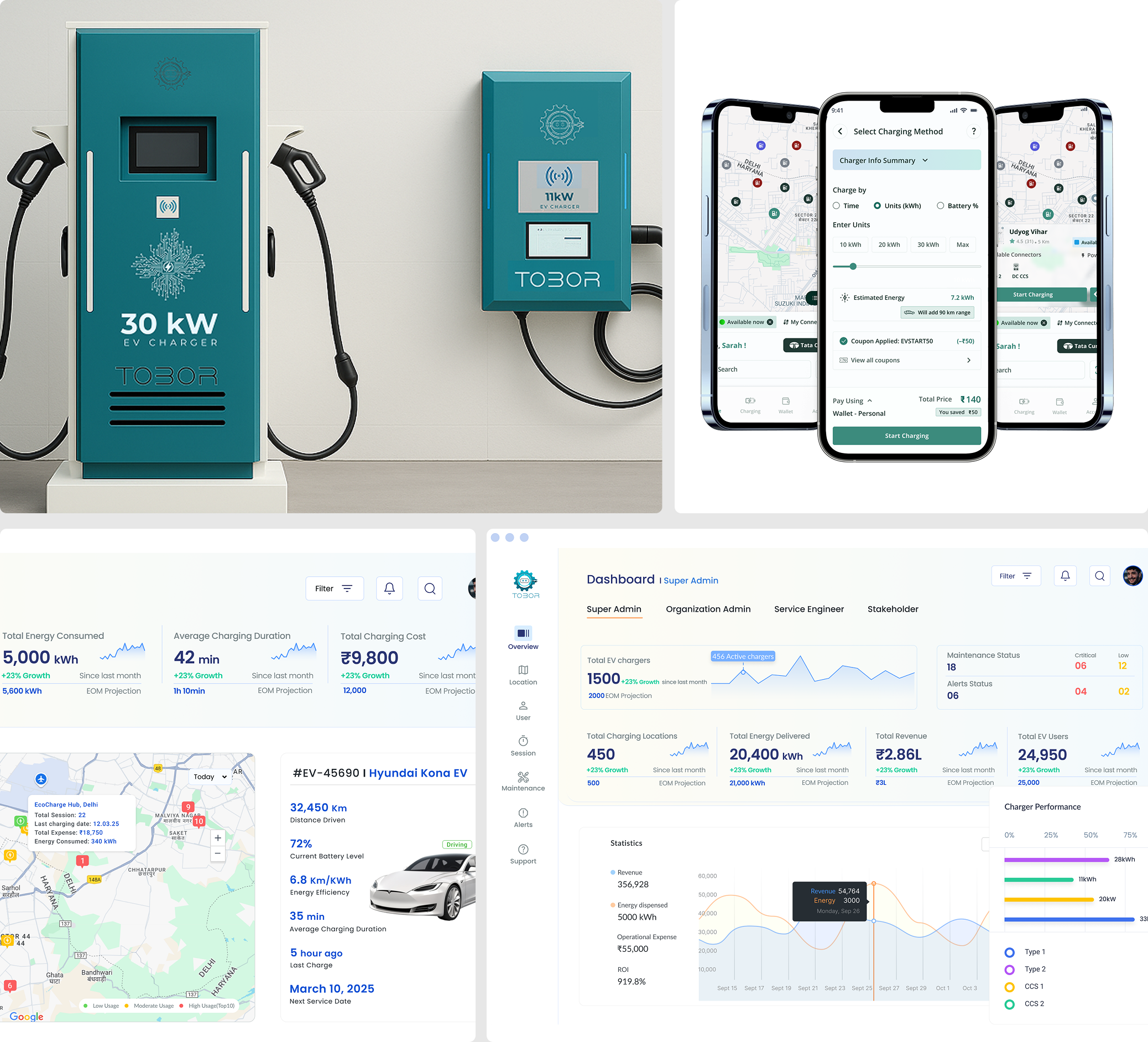

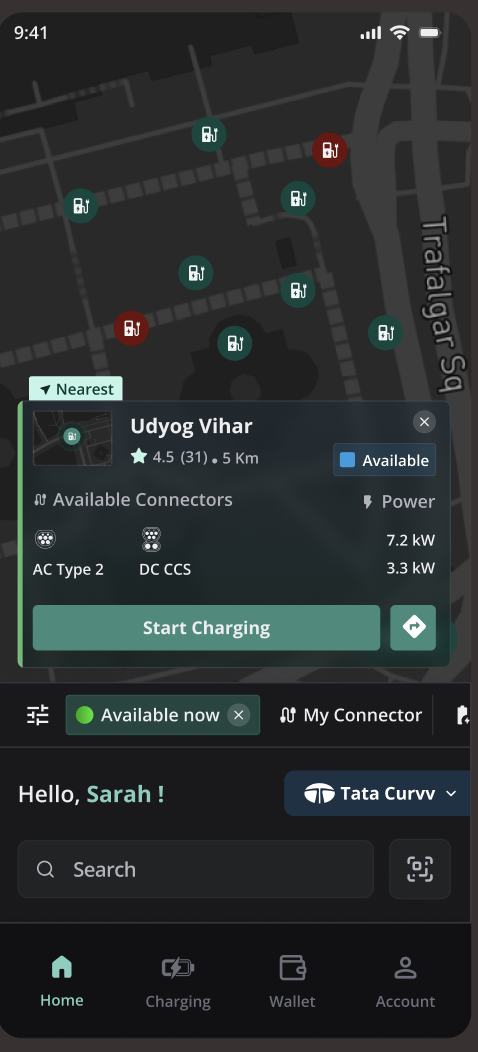

03Mobile app
Network overview
EV chargers32Locations8Energy1,840 kWh
Energy delivered Demo week
Chargers. Sessions. Insights.
Hardware. Software. Connected.App & dashboard: illustrative previews
Connected energy
Generation to charging.
One connected system.
Solar, storage and EV charging work together through TOBOR controls. Explore a representative energy flow.
01 · Generate

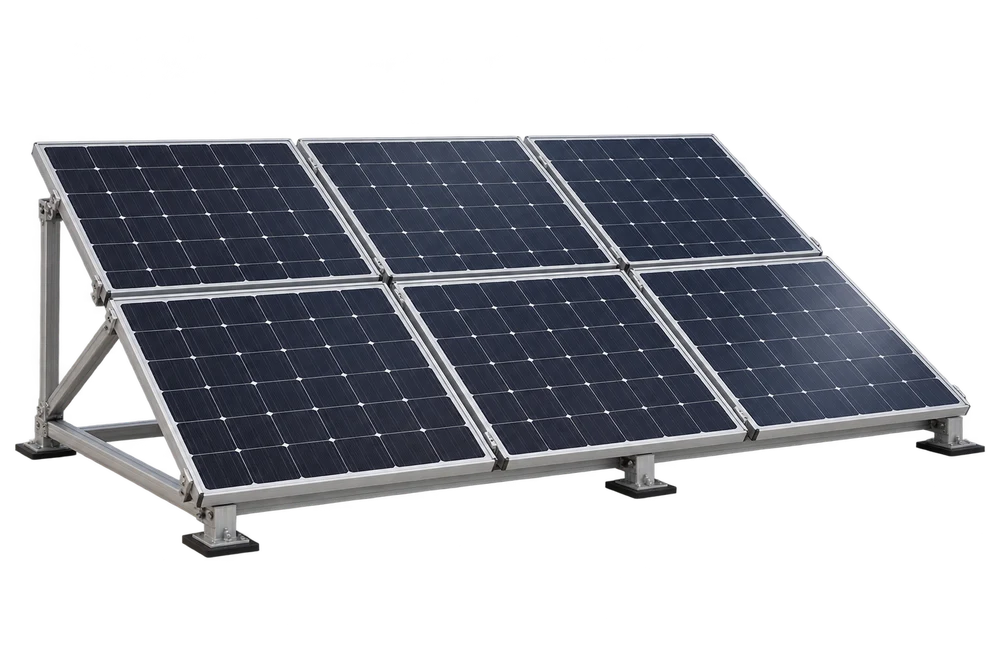

Solar PV
Rooftop · carport · ground-mount
Daytime generation is captured by the TOBOR power conversion instead of exported cheaply.
MPPT · DC
EMS CONTROL
02 · Store

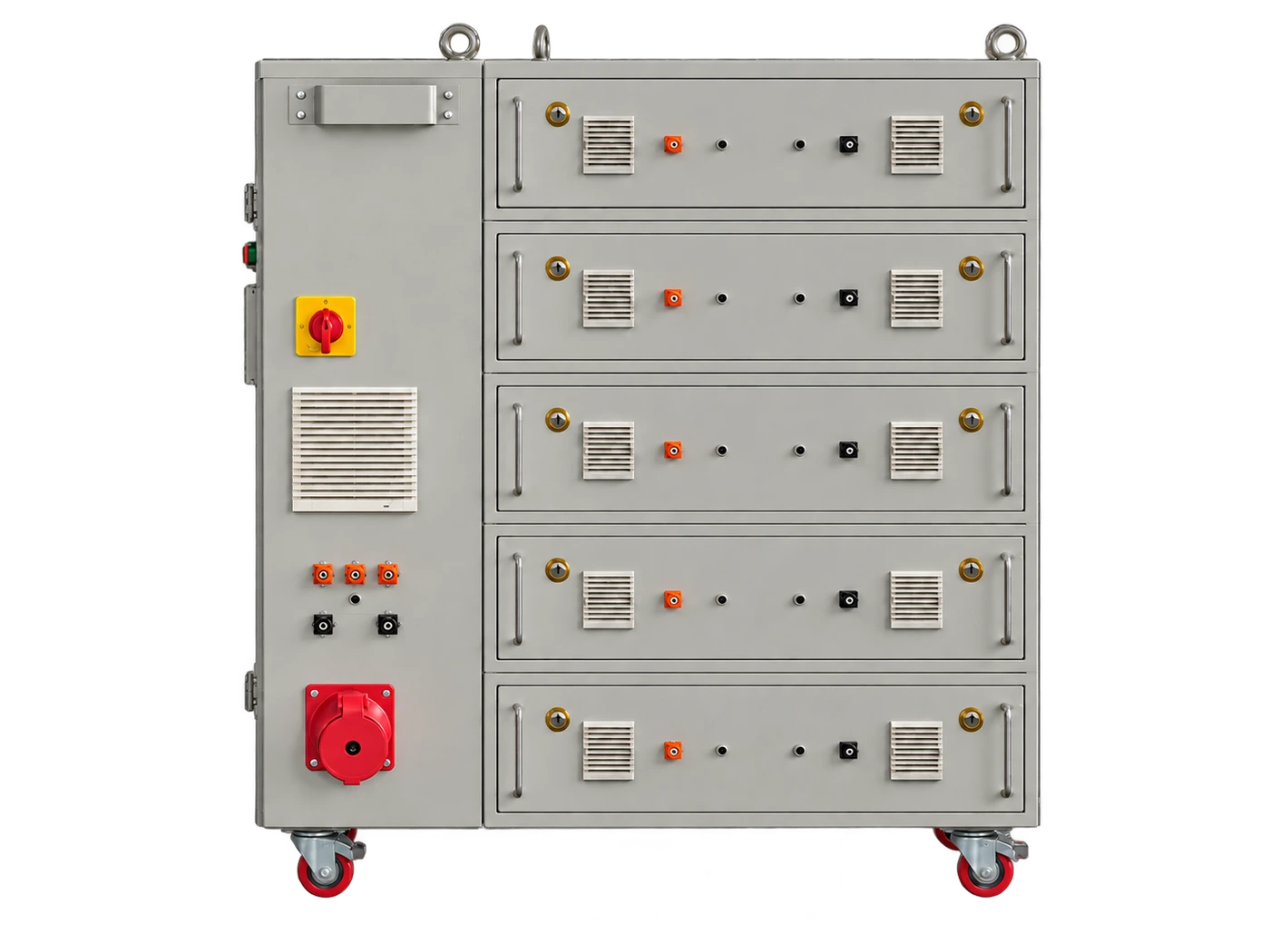

TOBOR BESS
30 kW – 10 MW · MTX · PTX · CTX
LFP storage with in-house BMS, EMS and bidirectional PCS. Holds the solar for evening and night charging.
+ Grid top-up off-peak (optional)
DC link
03 · Deliver

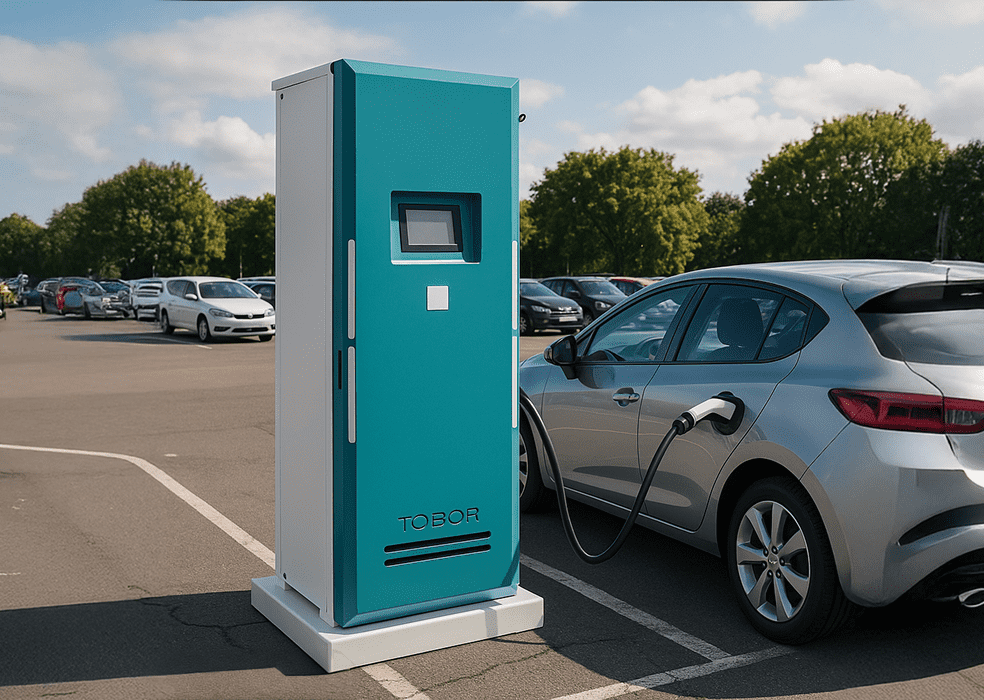

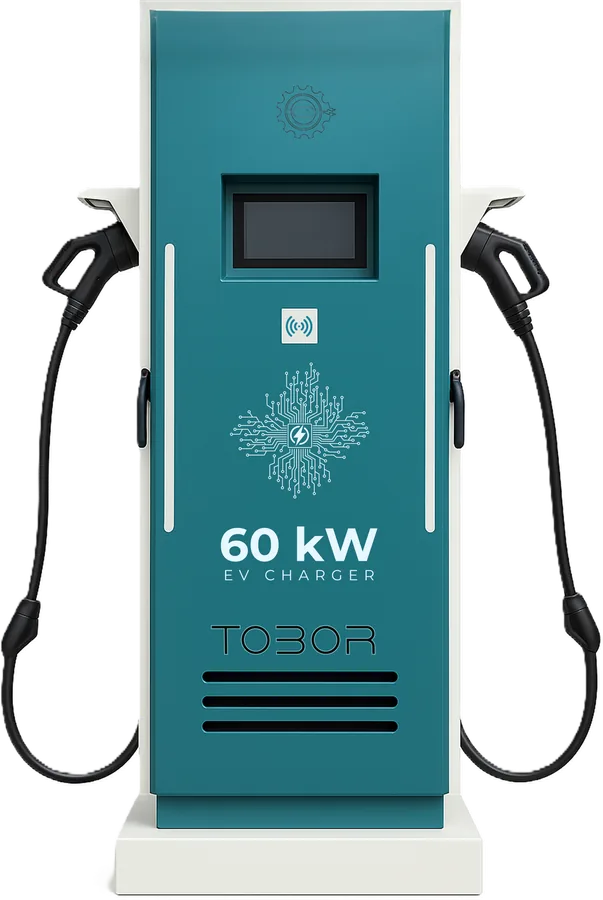

TOBOR DC charger
30 – 240 kW · CCS2 · OCPP 1.6J
The battery covers the charging burst, so chargers run at rated power on a small connection.
CCS2 DC
04 · Drive

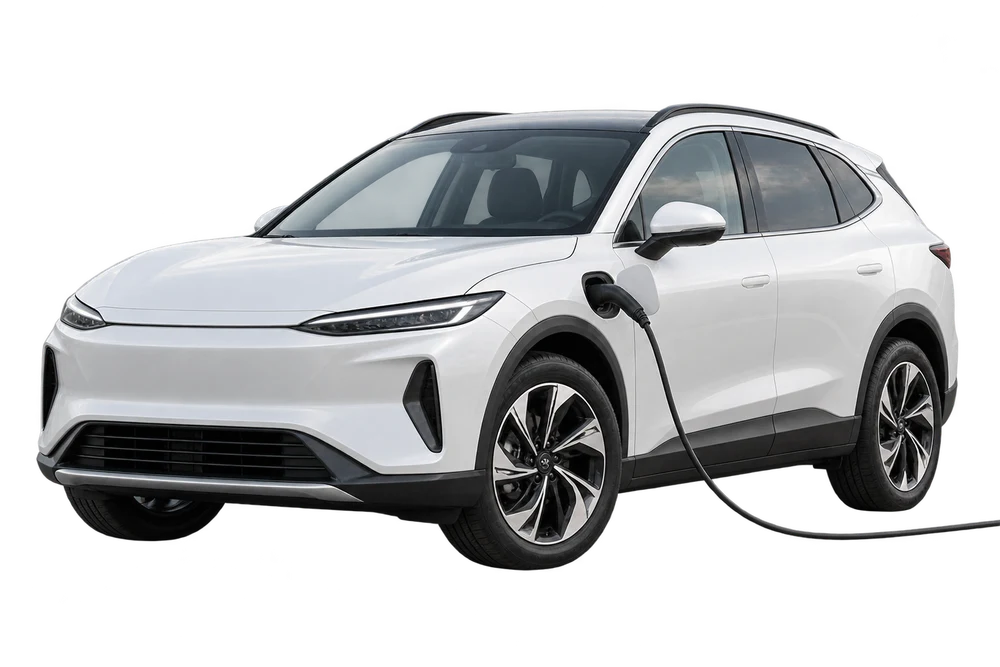

Electric vehicle
Cars · fleets · buses
Vehicles charge on stored solar energy, with sessions, payments and receipts in the TOBOR app.
TOBOR EMS + CSMS — one control layer for the solar, the battery and every charger
dispatch · charging sessions · load balancing · remote diagnostics
Charge vehicles on your own solar
Midday generation goes into the battery, then into vehicles in the evening and overnight — when most fleets and drivers actually charge.
Fast charging on a small connection
The BESS discharges at charger rating during a session and refills from solar or off-peak grid between sessions. No waiting on a transformer upgrade.
One supplier, one control layer
Battery, power conversion, chargers and software come from one engineering team — one point of accountability and one dashboard, from commissioning to service.
Project solutions
Engineered designs,
ready to adapt.
Reference designs from real TOBOR project offers — each with its single-line diagram, operating modes and specification. Start from the closest one and we size it to your site.
All-in-one · weak grid
EV charger with built-in BESS
- Storage120 kWh LFP
- Grid input30 kW
- Charging60 kW CCS-2 + AC + 2W
Charging hub · outage-proof
BESS-backed EV charging hub
- Storage125 kW / 250 kWh
- Charging2 × 60 kW DC · 4 cars
- Backup~2 h at full duty
MW-scale · industrial
Grid-charged MW-scale BESS
- Power / energy1.25 MW / 5 MWh
- PCS10 × 125 kW
- Interface440 V · 3-phase
Product range
The building blocks
of one system.
Use them together as a solar-to-EV system, or on their own: the same TOBOR BMS, EMS and power-module architecture runs from a 30 kW cabinet to a 10 MW block — and the chargers that sit on top of it.
Commercial & Industrial
500 kW–2 MW
PTX industrial systems built from 125 kW power modules — behind-the-meter storage for factories, hospitals, campuses and fleet depots.
PTX-500500 kW · 514.5 kWh
PTX-1000 / 20001 / 2 MW
Utility-scale
1.75–10 MW
CTX 20 ft liquid-cooled containers with a PCS module per rack and a 33 kV unit transformer — for DISCOMs, IPPs and large HT consumers.
CTX-50002.5 MW · 5.06 MWh
CTX-66001.75 MW · 6.64 MWh
CTX-B20 block10 MW · 20.26 MWh
CTX plantup to 1 GWh
EV Charging
3.3–240 kW
AC Type 2 and CCS2 DC fast chargers with in-house controllers, OCPP 1.6J and CSMS software — standalone or BESS-buffered.
AC chargers3.3 – 22 kW
DC fast · CCS230 – 240 kW
CSMS + appOCPP 1.6J
Designed & Assembled in India
Engineered & manufactured
Built in India by TOBOR.
We own the engineering from the battery pack to the cloud: BMS, EMS, bidirectional PCS, charger controllers and firmware — integrated into LFP packs, racks, cabinets and containers at our Gurugram facility.

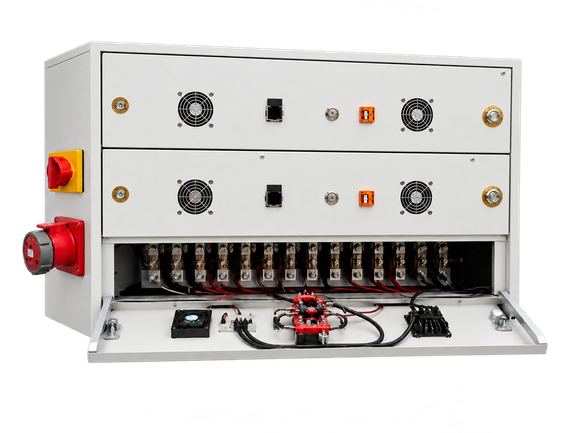

Our BMS PCB

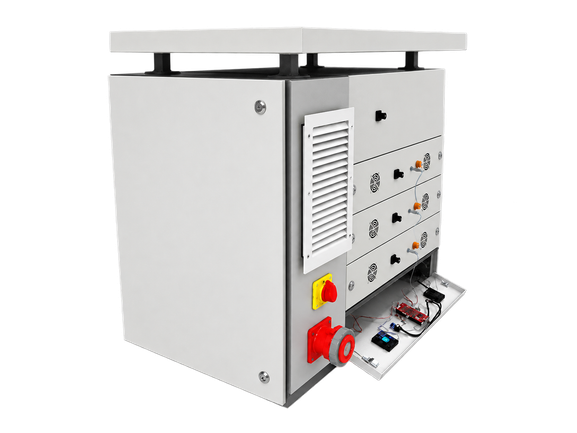

Cell modules
Inside the CTX-5000
Small beginnings.
Industrial scale.
Follow the energy from a single cell to a container. One modular architecture, engineered from the inside out.

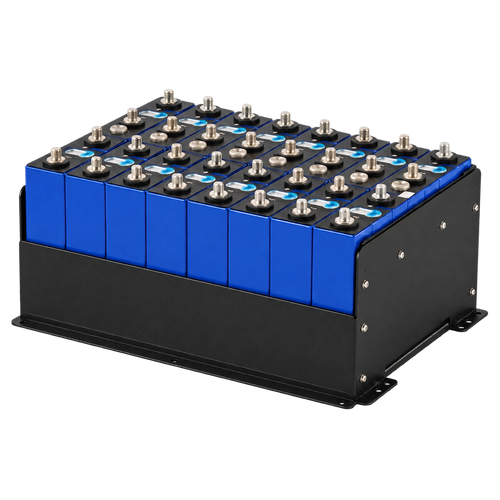

14.1 kWh
14 cells in series · 44.8 V
Fourteen cells form a pack. The battery management system monitors the cells and coordinates protection across the system.
253.2 kWh
18 packs · 125 kW PCS per rack
Eighteen packs build one rack, with its own bidirectional power conversion module. This modular architecture lets the project scale in defined steps.

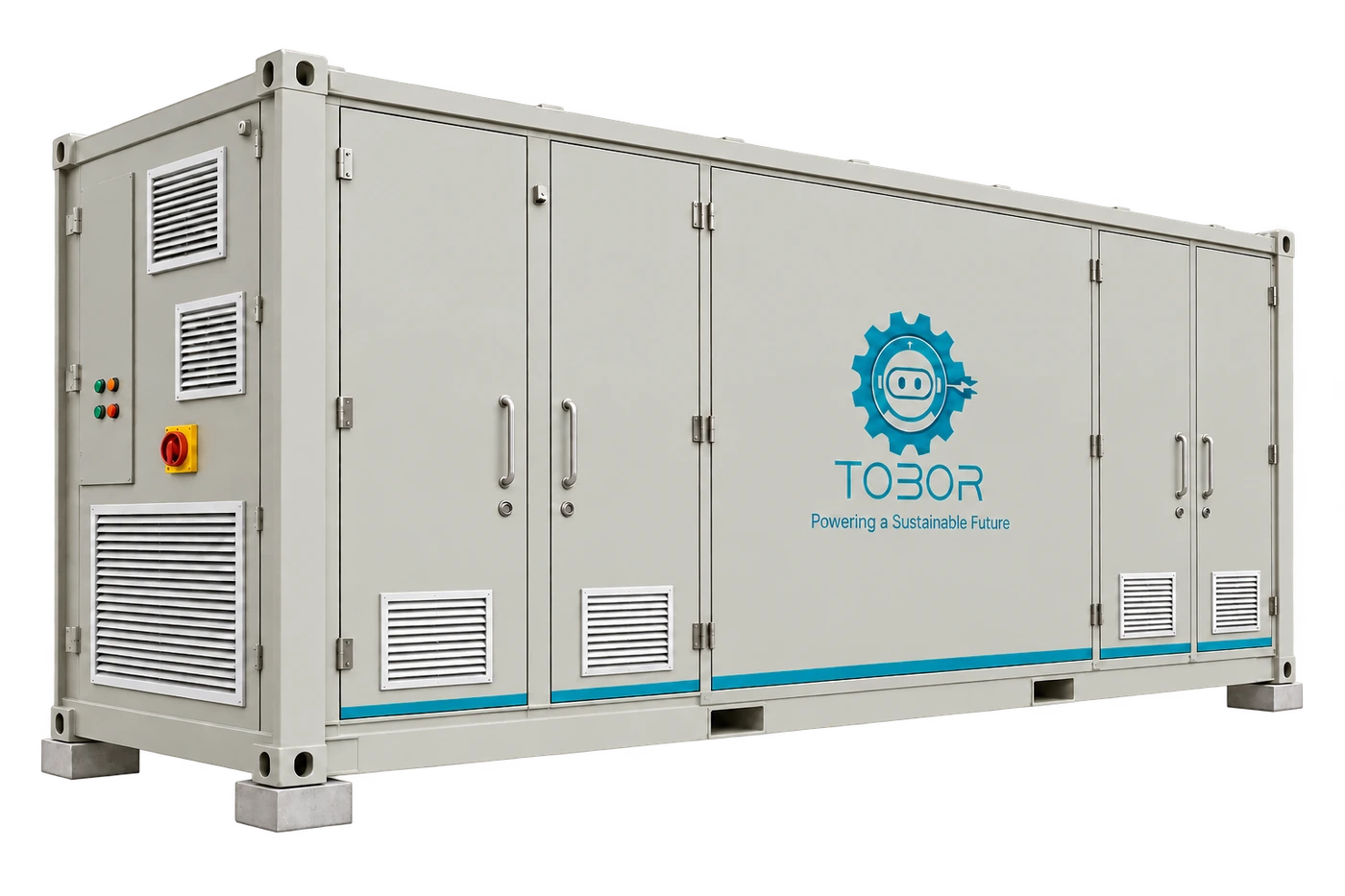

5.06 MWh
20 racks · 2.5 MW · CTX-5000
Twenty racks form the CTX-5000 container. Four containers form a CTX-B20 block rated at 10 MW / 20.26 MWh. Final configuration is confirmed for the project.
Explore CTX-5000 specificationsApplications
Where TOBOR systems work hardest.
01
Solar-to-EV charging hubs
Store your solar in a PTX or CTX battery and dispatch it straight into TOBOR DC chargers — fleets and public hubs charging on their own energy.
02
Solar firming & time-shift
Store midday solar from captive or open-access plants and dispatch it into evening peaks. CTX-6600 delivers ~3.8 h from a single container.
03
Peak shaving for HT consumers
The same battery flattens your maximum demand when vehicles are not charging. PTX systems from 250 kW to 2 MW, sized from your 15-minute interval data.
04
Arbitrage & grid services
10 MW / 20 MWh blocks on 33 kV with sub-100 ms response for energy arbitrage, frequency response and black start.
The charging end of the system
From two wheels
to transport hubs.

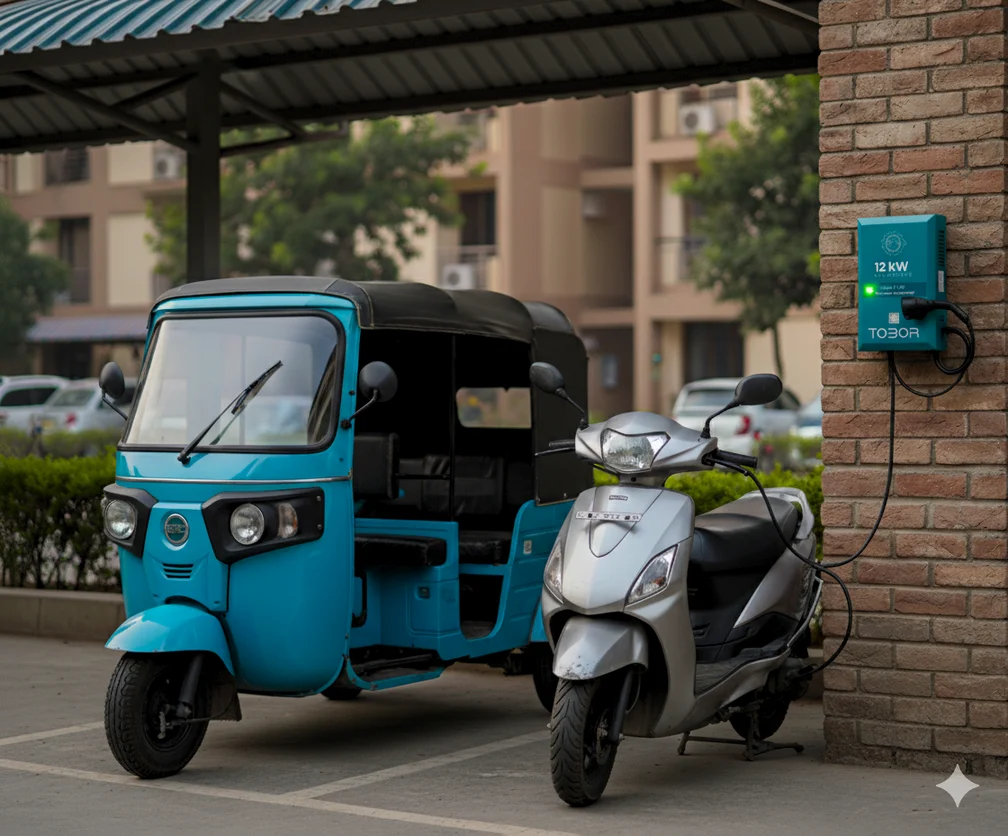

Type 6 and Type 7 DC chargers for two- and three-wheelers are our highest-selling charging category. Add AC Type 2 for homes and destinations, CCS-2 DC for cars and depots, and TOBOR software to connect it all. One partner for your next bay or your entire network.
Type 6 & Type 7 · 2W / 3W charging
Live monitoring
One EMS for the whole fleet.
State of charge, rack temperatures, dispatch schedules, charger sessions and alarms in real time — from a single cabinet to a multi-site portfolio of containers and charging hubs.
Planning storage above 250 kW? Compare PTX and CTX power and energy ratings, then share your load profile for a site-specific proposal.
Compare industrial BESS →Battery storage and EV charging: buyer questions
Does TOBOR offer industrial BESS above 250 kW?
Yes. TOBOR offers PTX-500 (500 kW / 514.5 kWh), PTX-1000 (1 MW / 1,028.9 kWh) and PTX-2000 (2 MW / 2,057.8 kWh). The CTX range includes 1.75 MW / 6.64 MWh, 2.5 MW / 5.06 MWh and 10 MW / 20.26 MWh configurations. These are industrial and utility battery storage systems; the portable Info Lite range serves a separate small-load application.
Compare industrial systems above 250 kW →Is TOBOR a BESS company in India?
TOBOR is a battery energy storage system (BESS) manufacturer and system integrator based in Gurugram, Haryana, India. Its industrial portfolio includes PTX systems at 500 kW, 1 MW and 2 MW, and CTX configurations up to 10 MW, with battery management, power conversion and energy management controls.
TOBOR's BESS company profile →What sizes of battery storage does TOBOR offer?
TOBOR's commercial and industrial range includes MTX cabinets and PTX systems from 30 kW to 2 MW. Its CTX utility range includes 2.5 MW / 5.06 MWh containers and 10 MW / 20.26 MWh blocks. kW and MW describe power; kWh and MWh describe stored energy. Select both for the site's load and required backup duration.
Compare battery systems →Can TOBOR combine solar, batteries and EV charging?
Yes. TOBOR integrates solar generation, battery storage and EV charging with energy management software. Batteries can store solar energy for later use and buffer charging demand. System sizing depends on the solar profile, charging demand, grid connection and operating schedule.
Explore system designs →How do I choose a BESS to replace a diesel generator?
Start with the peak load in kW, the energy needed during an outage in kWh, motor starting loads and the available charging time. TOBOR sizes systems using site requirements and load data. Savings depend on diesel consumption, electricity tariffs, operating hours and the selected battery system.
Plan diesel replacement →Does TOBOR provide EV chargers and a charging app in India?
Yes. TOBOR offers AC, CCS2 DC and light-EV chargers, charging station management software and the Tobor driver app. Drivers can use the app to find listed chargers and check availability. Property owners and fleet operators can compare charger hardware and request a site design with optional battery storage.
